LAOGPE20-RJ45-01

LAOGPE20-RJ45-01

20kV RJ-45 GbE Non-Metallic 802.af/at, PoE++, 4PPoE lightning arrestor

The ultrafast discharge Outdoor Gigabit Ethernet LAN lightning and surge protectors offered by Bangkok Wireless are an integral part of any outdoor installation to protect sensitive equipment from surges caused by lightning and ESD.



Application : Outdoor Wireless system and access point, 3G network, Outdoor camera and other telecommunication system



Security policy (edit with Customer reassurance module)



Delivery policy (edit with Customer reassurance module)



Return policy (edit with Customer reassurance module)

Description

** ดาวน์โหลด datasheet ได้จาก attachment tab **

อุปกรณ์ป้องกันฟ้าผ่า สัญญาณรบกวนและไฟชาก ( Lightning,Surge and voltage spike Protector/ Arrester ) สําหรับระบบอีเธอร์เน็ตแลน UTP CAT-5 CAT-6 RJ-45

เป็นอุปกรณ์ที่จําเป็น ในการติดตั้งระบบเครื่อข่ายที่มีมาตรฐาน โดยเฉพาะเมื่อมีการติดตั้งอุปกรณ์ไร้สาย กล้องวงจรปิดภายนอกอาคารและระบบอาคารขนาดใหญ่ที่ไฟมักจะไม่เสถียร์ ซึ่งเป็นสาเหตุให้เกิดอันตรายแก่อุปกรณ์ราคาแพง เช่น Ethernet switch, Server และ Router เป็นต้น

รองรับระบบไฟเลี้ยงทางสายแลน POE+ มาตรฐาน IEEE802.3af, IEEE802.3at (Mode A/B), PoE++ และ 4PPoE (four pair PoE)

ตัวป้องกันฟ้าผ่า สัญญาณรบกวนและไฟกระชาก ESD ทางสายแลน รุ่น LAOGPE20-RJ45-01 ผลิตจากวัสดุคุณภาพ และติดตั้งอยู่ในกล่องกันนํ้าและป้องกัน UV สามารถติดตั้งภายนอกอาคารได้เป็นอย่างดี



โดยติดตั้งอุปกรณ์คั้นกลางที่ปลายสายแลนก่อนจะเข้า Ethernet switch หรืออุปกรณ์ที่ต้องการปกป้อง  โดยจะต้องเตรียมสายดินที่ได้มาตรฐานเพื่อต่อกับจุดต่อสายดินของตัวอุปกรณ์



ในชุดมีพุกและน๊อตสําหรับติดตั้งกับผนังมาด้วย

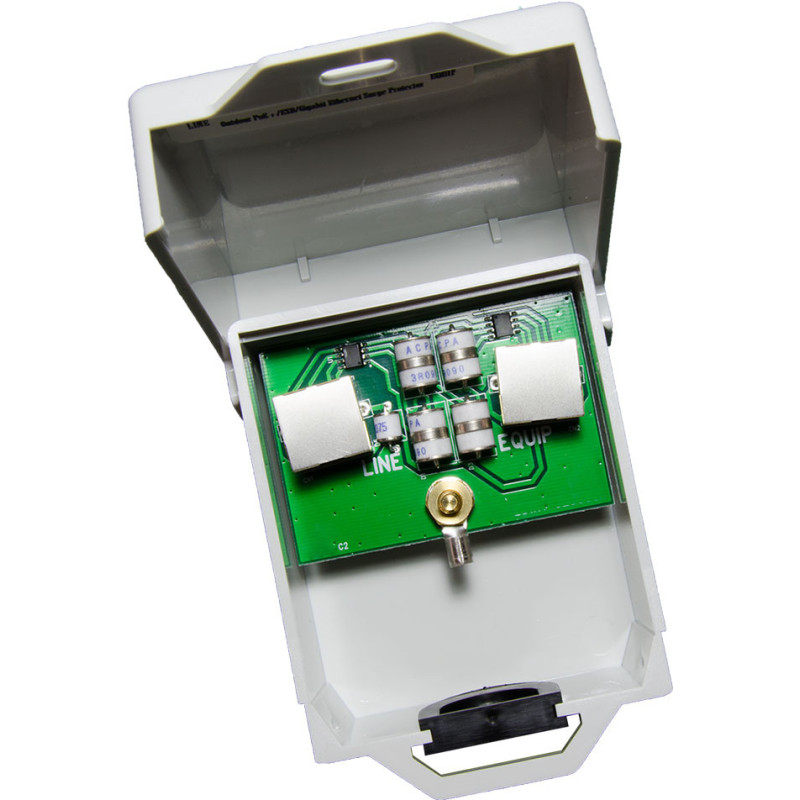

LAOGPE20-RJ45-01, Gigabit Ethernet RJ-45 ESD POE+ Outdoor lightning arrester

One of the worst things that can happen to your outdoor devices is to experience a power surge. It normally occurs when there’s a sudden increase of voltage, which the critical components in your devices can no longer handle (that’s also the reason why you have to operate them at a particular electric power or voltage level). For example, a lightning strikes your cable, which then increases the electric input into devices. An increase in electricity can cause irreparable damage on your technologies, among other things.

Offers Ample Protection

The LAOGPE20-RJ45-01 Outdoor PoE takes serious consideration on the overall protection of your PoE (power over Ethernet) networks. Aside from having a lightning surge protector, it also makes use of the GDT (gas discharge tubes) protection. This one works by providing sufficient protection on any sensitive or vulnerable part from transient voltages. It has a discharge capacity of around 20KA.

Moreover, the RJ45 jacks are also grounded or shielded to prevent the sudden electrical surge from passing through the regular cables. Lastly, it boasts of a high insulation resistance, which means it holds off any excess electric flow excellently.

Easy Mounting or Installation

The LAOGPE20-RJ45-01 Outdoor PoE is designed to work in the outdoors very well. It can survive a lot of harsh environmental conditions, and it allows for bidirectional clamping to ensure that it definitely stays tin place. The enclosure is not only weather resistant but also impact resistant so even if it accidentally falls, it doesn’t cause any undue damage on the most important parts. Moreover, you can close the enclosure using the hinged cover, preventing any tampering from an authorized person.

Works with PoE+

PoE+ is currently the new wave of PoE, and so far, only a few devices use it. However, what makes it great is that it has backward compatibility to 802.3f, which most PoE technologies utilize.



  • Verified 100% Transmission @ 1000Mb/s over 100 meter Cat5E cable by SmartBits Packet Generator Protects all 4 pairs (8 wired)
  • Provides transient protection for the protected differential line pair to

                       IEEE 802.3 af/at, UL497 (Transmission) POE

                       IEC 61000-4-2 (ESD) ±30KV(Contact/Air)

                       IEC 61000-4-4 (EFT) 60A(5/50ns)

                       IEC 61000-4-5 (Lightning/Surge) 20KA(8/20μs)

                       IEC 61643-21, IEC61000-4-2, IEC61000-4-4, IEC61000-4-5 and CORE 1089

                       Cable Discharge Event (CDE)Two shield RJ-45 for line (input)

                       and protected device (output)

                       CE, ROHS, ISO9001 and ISO14001

  • Impact and weather resistant (IP66) enclosure with locking.
  • Clamping voltage:

                                        Line to Ground (Earth): 72 Volts

                                        Shield to Ground (Earth): 72 Volts

                                        Line to Line: 2.8 Volts

  • Nominal discharge currents (In):

                                   Line to Line: 3kA @ 8/20us

                                   Line to Ground (Earth): 20kA @8/20us

  • POE+ Maximum input voltage60 Volts / 2 Amps (2000mA.)
  • Supports PoE++ or 4PPoE (four pair PoE)
  • Response time (Line to line) : < 1ns.
                            (Line to ground (earth)) : < 100ns.
  • Gas tube Insulation Resistance : ≥1010Ohms
  • Maximum capacitance : <3pf
  • Attenuation : Better than -0.5db @100MHz.
  • Impedance 100 ohms
  • Protection modesLine-Line, Line-Ground
  • Transmission rate Vs : 10/100/1000Mbits per second
  • Pin protection : 1/2/3/4/5/6/7/8 lines
  • Connector type : two RJ-45 jack
  • Ground wire : 12 AWG
  • Operating temperature : -40C(-40F) to +85C (+185F)
  • Operating humidify : 0 - 95% non-condensing
  • Case Material : Anti-UV polycarbonate, IP66
  • Dimensions : 78 x 103 x 49 mm.
  • Weight : 110 g.
Product Details
LAOGPE20-RJ45-01
Attachments
Download
datasheet

LAOGPE20-RJ45-01, 20kV RJ-45 GbE Non-Metallic 802.af/at, PoE++, 4PPoE lightning arrestor

Download (301.33KB)
